Key Features:

Pure sine wave solar inverter

Output power factor 1

High PV input voltage range

Built-in 80A MPPT solar charger

Battery equalization function to optimize battery performance and extend lifecycle

Built-in anti-dusk kit for harsh environments

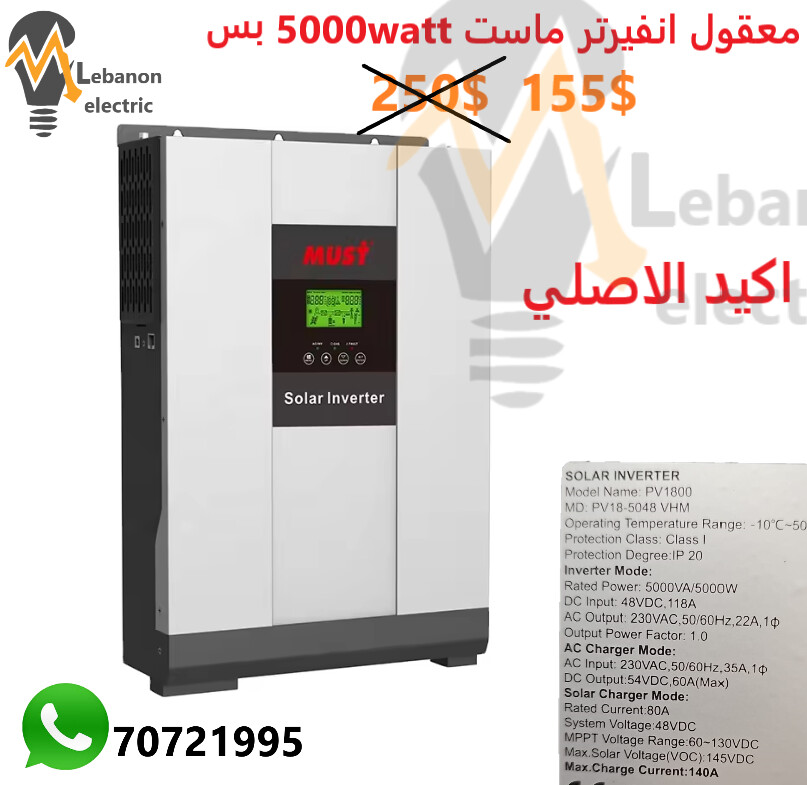

Model: PV18-5048 VHM

Nominal Battery System Voltage: 48VDC

Inverter Output:

Rated Power: 5000W

Surge Power: 10000W

Waveform: Pure sine wave

AC Voltage Regulation (Batt.Mode): ±5% (220VAC ~ 240VAC)

Inverter Efficiency (Peak): 93%

Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)

AC Input:

Voltage: 230VAC

Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184~253VAC (VDE4105)

Frequency Range: 50Hz/60Hz (Auto-sensing)

Battery:

Normal Voltage: 48VDC

Floating Charge Voltage: 54VDC

Overcharge Protection: 60VDC

Solar Charger & AC Charger:

Maximum PV Array Open Circuit Voltage: 145VDC

PV Array MPPT Voltage: 64~130VDC

PV Input Power: 2880W/3840W

Maximum Solar Charge Current: 60/80A

Maximum Efficiency: 98%

Maximum AC Charge Current: 60A

Maximum Charge Current: 120/140A

Physical Specifications:

Dimensions (WHD)(mm): 297.5x468x125

Net Weight(kg): 13.3
