1. Structure Information: The tube is made of strong porcelain. The tube is filled with pure quartz sand and used as the arc medium after chemical treatment.
2. Short Circuit Protection: The fuse provides short circuit and open circuit protection in photovoltaic power station and inverter rectifier system.
3. Breaking Protection: The fuse provides fast breaking protection for surge current and short circuit fault voltage of photovoltaic power generation system.
4. Ideal Replacement: The fuses made of premium material are ideal replacements for the old and damaged parts.
5. Easy to Install: Comes with a compact size and a light weight as well, the easy installation can be quickly completed.

Spec:

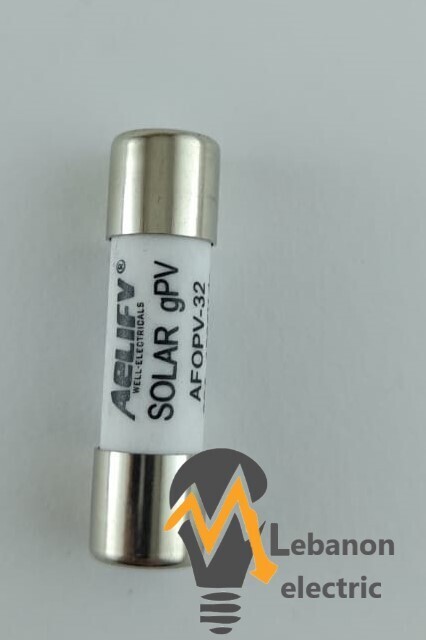

Item Type: Solar PV Fuse
Material: Quartz, Ceramics
Rated Current: 30A
Fuse Size: Approx. 10 x 38mm / 0.39 x 1.5in
Operation : gPV
Standard: GB T13539.6 IEC60269 6
Breaking Capacity: 20kA
Time Constant: 1 to 3ms
Voltage: 1000VDC

How to Use:
After inserting the fuse, press it to close to complete the installation.
