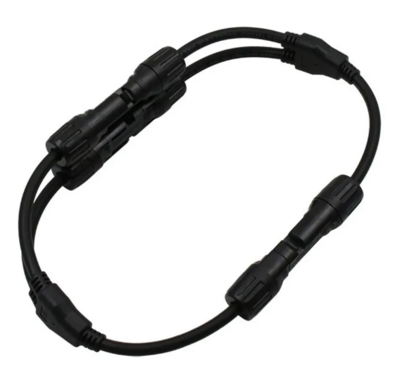

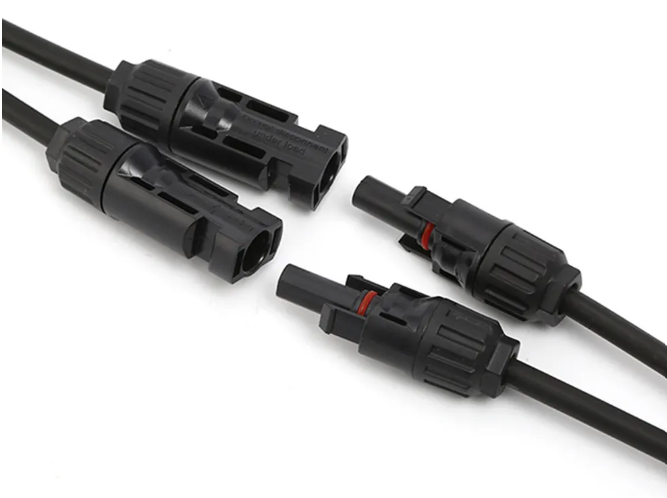

SRNE 1 Pair Branch Y Adapter Connectors M/M/F and F/F/M For Solar Panels Cable PV System Waterproof Socket Plug Connector IP67

Operating Current: 20A (4mm2), 30A (6mm2)

Withstanding Voltage: DC1000V

Contact resistance: <=>

Insulation resistance:

500MΩ Operating Current: 20A (4mm2), 30A (6mm2)

Withstanding Voltage: DC1000V

Contact resistance: <=>

Insulation resistance:> 500MΩ

For single-core cable cross-section: 1.5mm2--4mm2

Cable OD Range: Φ5mm ~ Φ 7mm

Ambient temperature: -40 ° ~ + 105 °

Protection class: IP67

Security Level:Ⅱ

Insulation material: PPO, Black

Contact: Copper cn, sn Nickel

Flammability rating: UL94-VO

Terminal connection: Crimp
