Measured parameters:

- Constant voltage

- The voltage is variable

- The current is constant

- The current is variable

- Resistance

- Capacity

- Frequency

- Ringing of the chain

- Verification of pn junctions

- H21e transistor

- Temperature

- Logic Probe

Specifications:

Display type: digital

Selection of measurement limits: manual

LCD indicator 3½ digits (maximum number indicated 1999)

Overload protection

The size is 190×86×33 mm

Power supply: 9 V "Krona" battery

Capacity: 20 nF - 20 μ. F

Checking diodes: 3V/0.8 mV

High sensitivity - 100 microns. IN

Automatic load indication - "1"

Automatic detection of direct current or voltage polarity

Constant voltage:

200MV, 2V, 20V, 200V, (accuracy ±0.5%)

1000V (accuracy ±0.8%)

AC voltage:

200MV (accuracy ±1.2%)

2V, 20V, 200V (accuracy ±0.8%)

700V (accuracy ±1.2%)

Direct current :

2MA, 20mA (accuracy 1.2%)

200MA (accuracy 1.4%)

20A (accuracy 2%)

Resistance:

200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (accuracy ±0.8%)

20MΩ, 200MΩ (accuracy ±5%)

2000MΩ (accuracy ±10%)

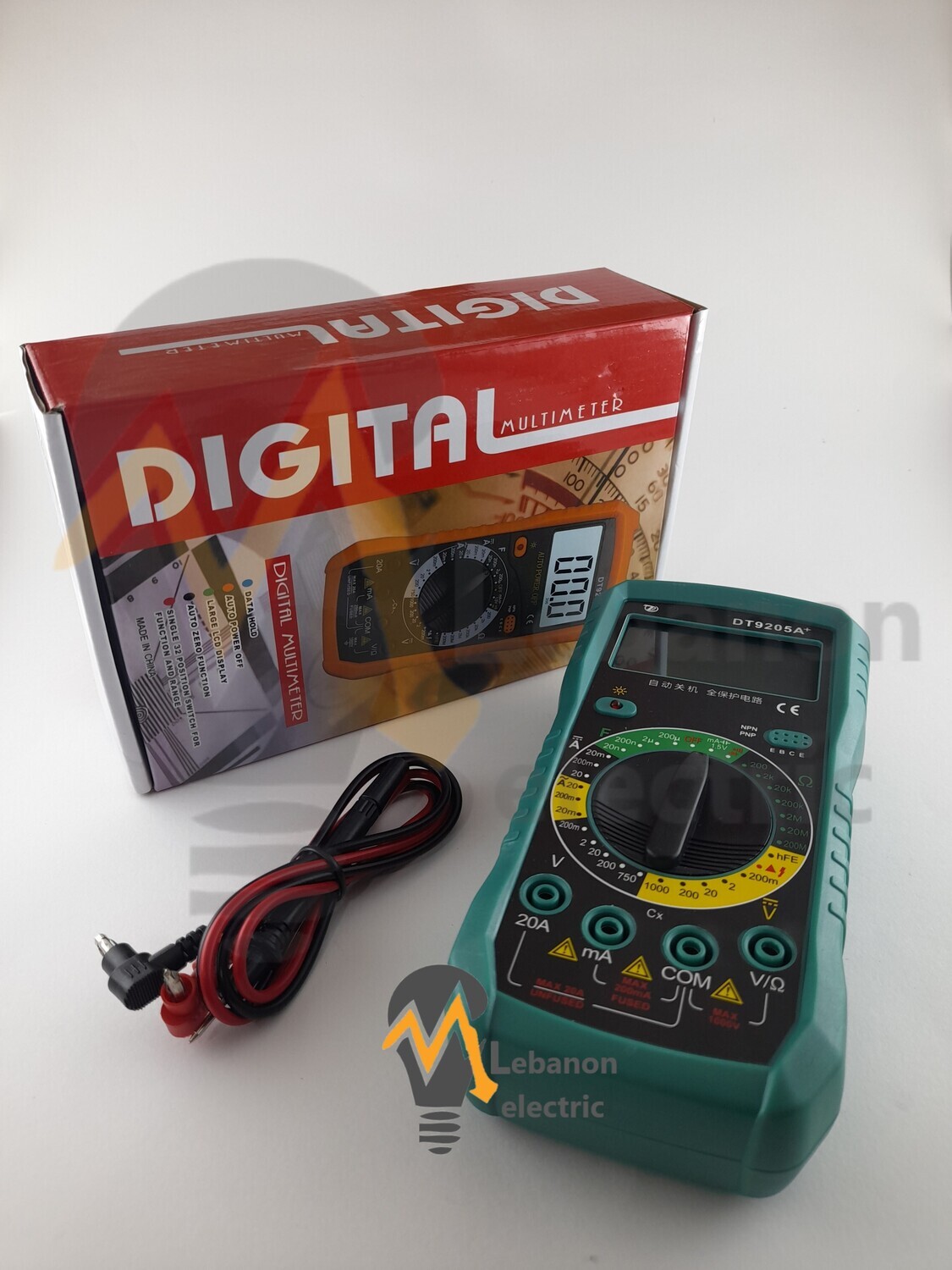

The set includes:

- Multimeter

- Measuring probes

- Thermocouple

- Cover

- Battery

- Instructions in Russian
