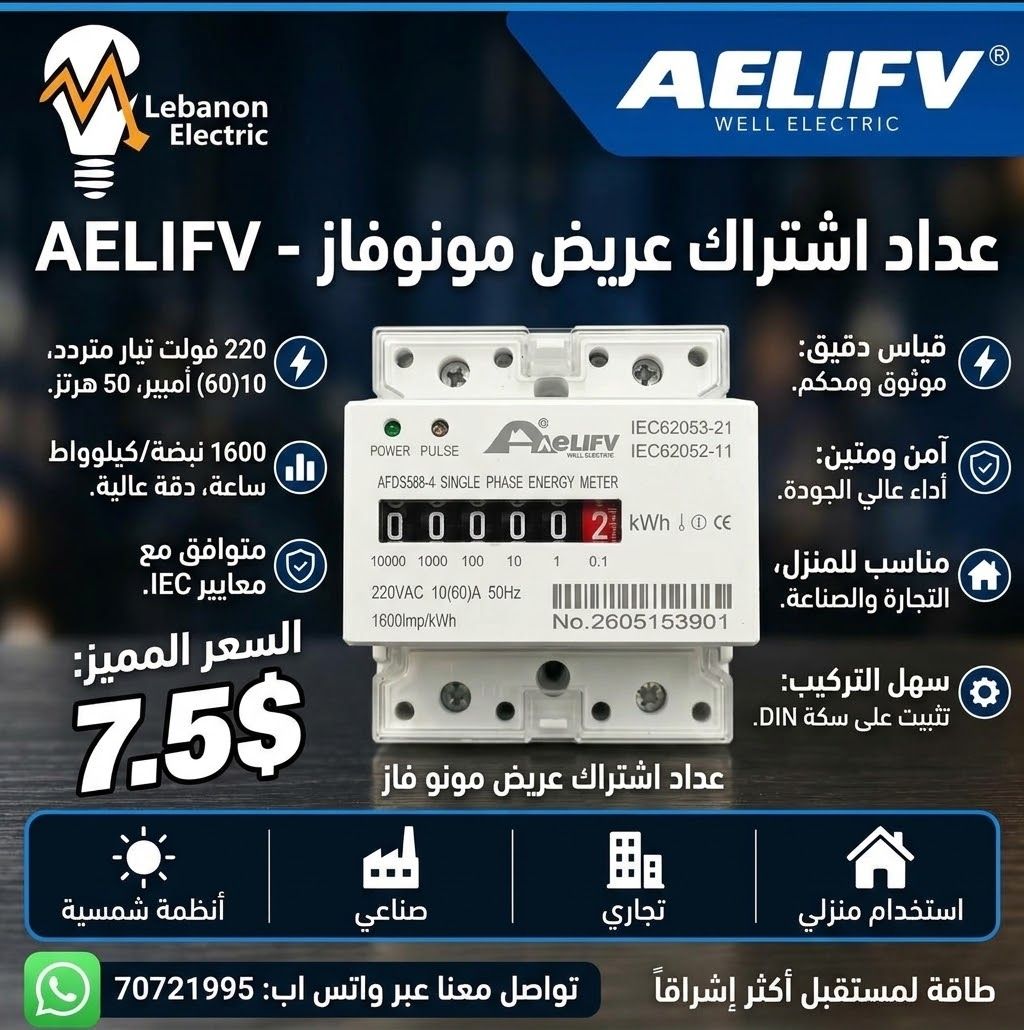

220V 10-60A kWh Meter Digital LCD Single-phase 4P DIN-Rail Electric Energy/عداد اشتراك عريض

Specifications:
Display:6-digit
Color: White
Voltage: 220V
Current: 10(60A)
Frequency: 50Hz
Impulse constant: 1600imp/kWh
Operating Humidity: ¡Ü95%
Operating Temperature: -25 ¡æ ~ + 55 ¡æ
Size:10 x 7.5 x 6.5cm/3.93 x 2.95 x 2.55inch
Weight: 276g

Installation and use:
1. Installation of energy meter required experienced electrician or professional, and determined to read the manual.
2. energy meter should be installed in the indoor ventilated and dry place, adopt 35mmDIN standard guide type installation, the bottom plate of the electricity meter should be fixed in the wall that is strong refractory, and not easy to vibrate.
3. Electricity meters should be installed in protective cabinets in places where there are filth and potential damages.
4. Install according to the wiring diagram ,it is best to use a multi-strand copper wire to avoid the failure of the electrical energy meter working or burning down.
5. When the electricity meter is correctly connected to the power grid, the power indicator of the meter is light.
6. Electric energy meter should take the lightning protection measures when it is used in the area with more lightning, so as to avoid damaging the electric energy meter by lightning.
7. The load capacity of the energy meter is in the range of 0.05Ib ~ Imax (direct access) or 0.02Ib ~ Imax (through the access type of the transformer),More than the transformer ratio,is the actual power consumption
8. Data display: the meter display
9. Power indication: the green light indicates that the power meter has normal working power
10. Pulse indication: when a red light indicates that the power pulse is detected
11. When there is a sampling signal, the pulse light is about 80ms

Package Included:
1 x Energy Meter
